Premium EV Charging Solutions

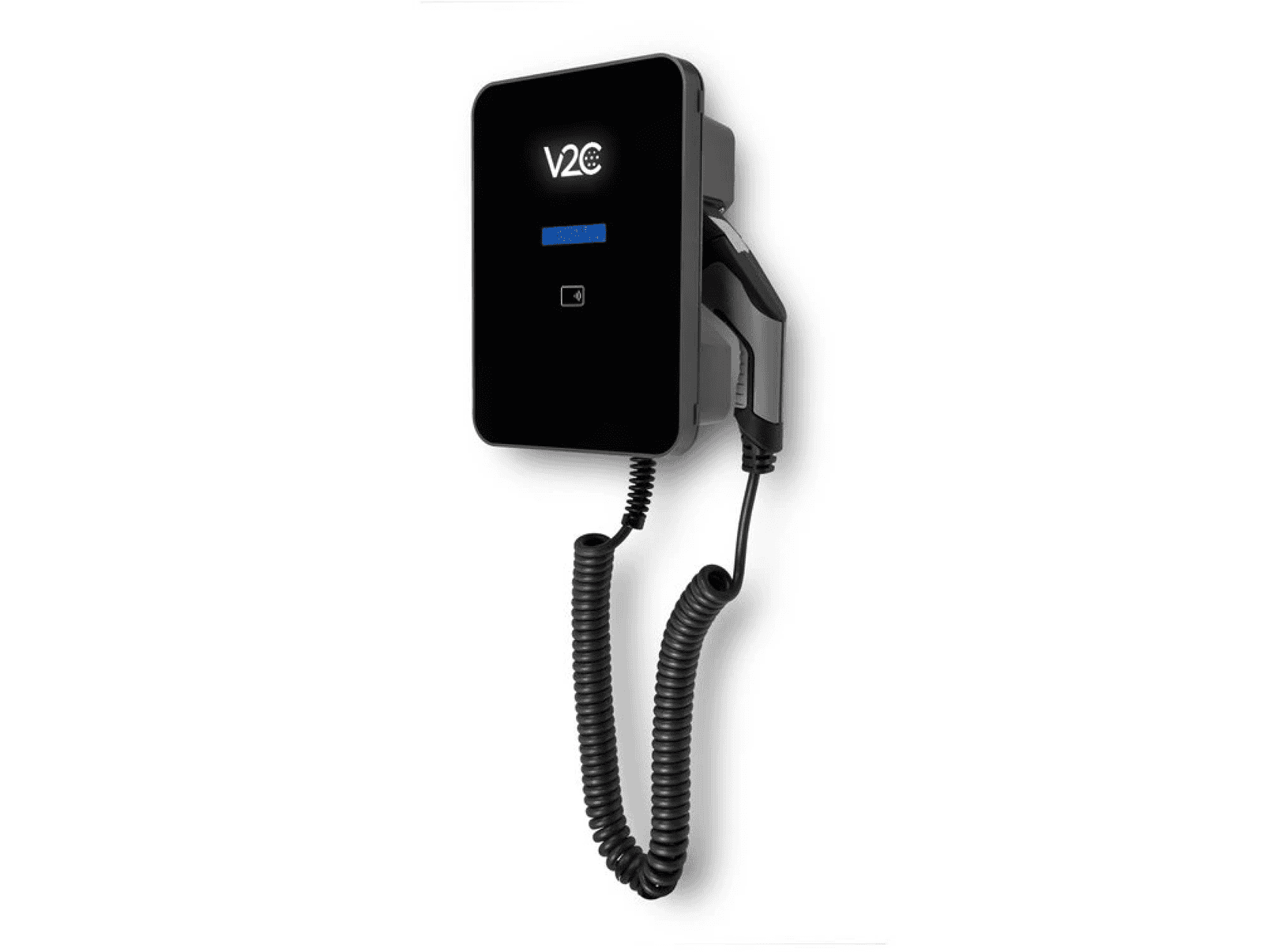

V2C Trydan 22kW Display SPRING CABLE 4,5m – Innovative and intelligent charging at work, home, and the ultimate user and charging control with App or web dashboard.
RFID – standard for user access management!
Trydan is synonym for Tri – connection
Connect to your phone.
Enjoy all the advantages of V2C Cloud app connecting by WiFi or Bluetooth: control the charge, check statistics, and schedule according to your needs.
Connect to Alexa.
Imagine saying “Alexa, start charging my electric car”. With Trydan, it’s a reality. Your voice submits orders and Alexa executes them.
Connect to solar inverter and charge solar-generated power to your EV
Trydan has the most complete photovoltaic integration system which allows you to charge directly from solar power plant. A solar EV charger works by allowing you to use your excess solar energy to charge your EV directly. Meaning FREE energy to power your EV!
The Solar EV Charger is simple to install and use, increasing the Return On Investment (ROI) for your panels and electric vehicle. But don’t worry if you don’t have solar panels because the EV Charger will still work as a conventional charger that uses grid power.
* Trydan is compatible with all solar inverters. Wirelessly, it establishes a direct connection to GoodWe, Fronius, Huawei, Ingeteam, Kostal, SolarEdge, SolaX, Victron and Shelly and Wibeee meters.
[ux_video url=”https://www.youtube.com/watch?v=TSnKat2HRcU”]
V2C Trydan 22kW Display SPRING cable Key Features
Dynamic Load Management – It identifies the total energy consumption in real-time and adjusts the charge to avoid overloading.
Home Assistant integration – Outstanding charging experience thanks to its compatibility with home automation systems.

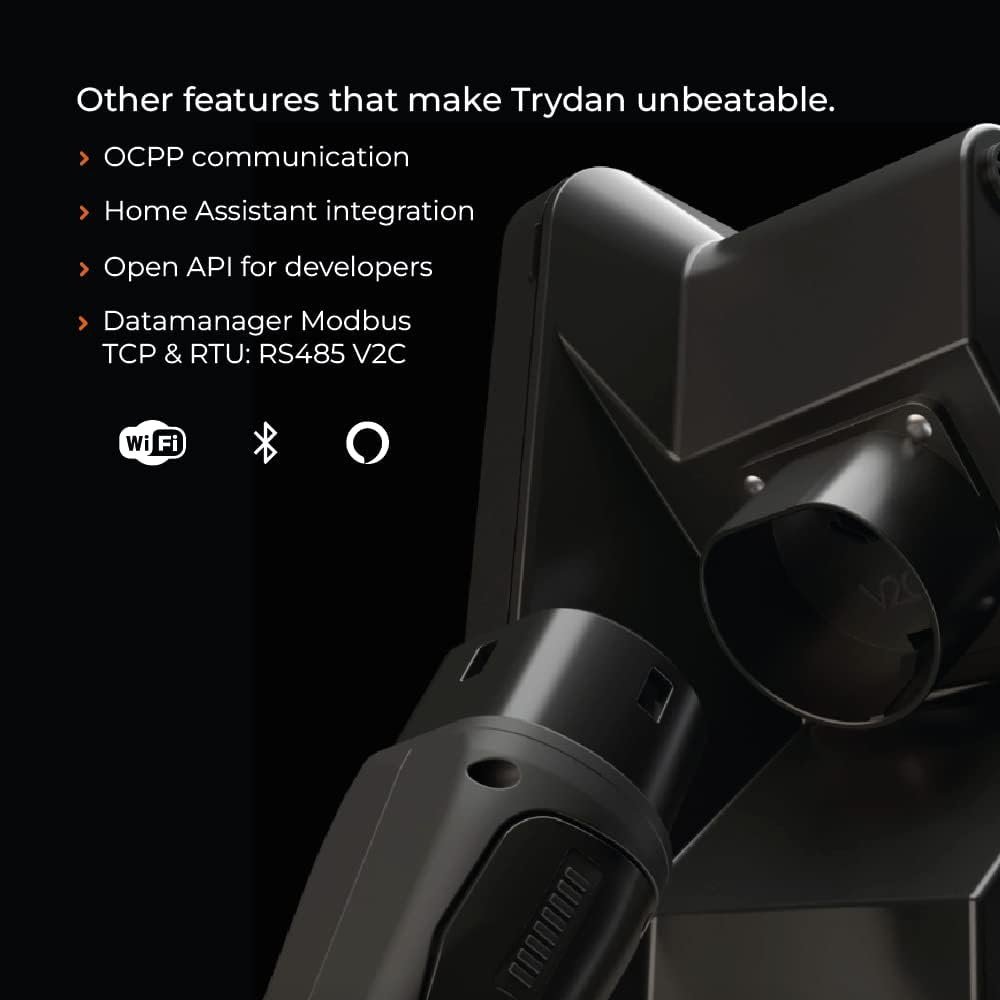

Limitless connectivity – Trydan is the only e-Charger that allows full control through Telegram app thanks to the V2C Bot. Supports communication via OCPP. Trydan also includes OPEN API for developers.
V2C Cloud
The charging experience raised to the highest level.
Program the load in the time slot of your choice to maximize savings.
Activate or deactivate charging, select its intensity, block the use of the charger and consult all statistics from V2C Cloud.
Specifications – model TRY32-3-M
- Indoor & Outdoor Mounting location
- Output Power: 22 kW (3-ph)
- Rated Supply Voltage: 230V AC Single Phase or 400V AC 3-phase (+/- 10%)
- Supply Frequency: 50/60 Hz
- Colour: black
- Type 2 output spring cable, 4,5m
- Rated Current: 32 A max
- LED with graphical display
- Standby Power Consumption: 3W
- Operating Temperature: -25°C to +50°C
- RFID for user access control
| Degree of protection | IP54 |
|---|---|
| Dimensions(W*H*D) | 240x334x153mm |
| Operating Temperature | -25 ºC to +50 ºC |
| Power (kW) | 22 |
| Voltage | 230/400v |
| Frequency | 50/60Hz |
| Phases | 3 phases |
| Warranty | 3 Years |
| Connector | Cable Type 2 |
| Communication | 4G with SIM included, Ethernet, OCPP 1.6, WiFi |
| Brand | V2C |
| Brand and Model | V2C Trydan |
| RFID | RFID+NFC |
| Charging schedule | Yes |
| OCPP ready | Yes |
| Integrated Cable | Type 2 cable |
| Dynamic Power balancing | Yes, (no additional SmartMeter needed for load balancing) |
| Smart control via | Side Buttons, App, ModBus, Open API |
