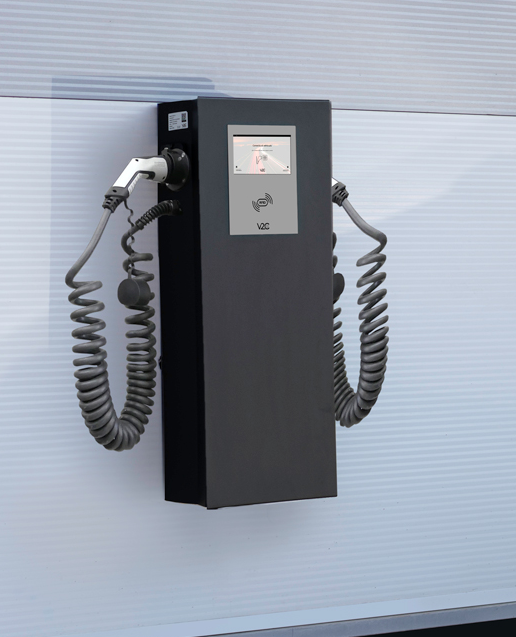

V2C POLE Wallbox cables – 2×22 kW with cables, 8” Display, 4G, LAN/Wifi, RFID Features:
- 8” DISPLAY – 2000 Lumen!
- 2x Type 2, 5 meter spring cables
- RFID authorization
- OCPP communication system – compatible with CHRG Network management system
- Anti-vandal steel
- Up to 2×22 kW
- MID meter
- 4G, Wifi, LAN connectivity

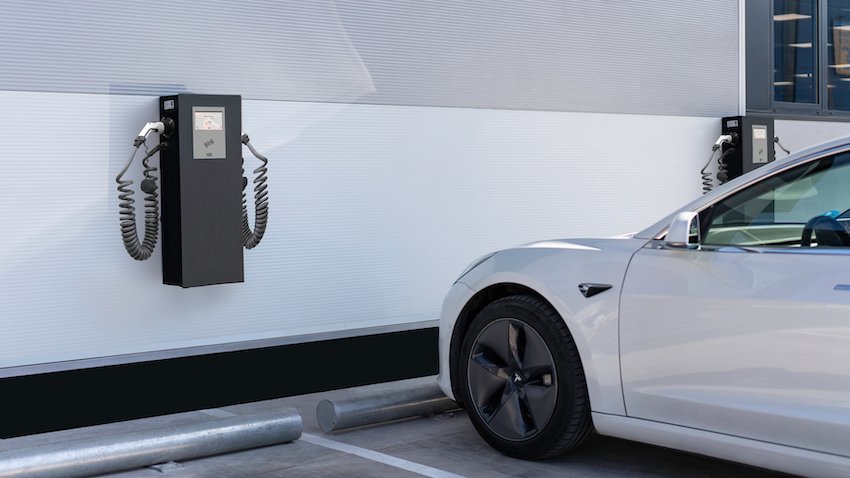

V2C POLE Wallbox cables – advanced yet cost effective solution for fast, up to 2×22 kW EV charging. It can be installed on the wall and used in garages, parking lots and other private areas.
Electrical characteristics:
- Conector type: Socket / Type 2
- Grid type: 230V / 400V
- Maximum recharging intensity: 32A (per phase)
- Maximum recharging power: 7,3kW o 22kW (per socket)
- Configurable current: from 6 to 32 Amps
- Nominal frequency: 50Hz / 60Hz
- Protection index: IP54 / IK10
- Residual current detection: AC 30mA / DC 6mA*2
- Electrical protections per socket: type A differential and 40A circuit breaker.
- Operating temperature: from -5º to 45º
- Storage temperature: from -40º to 70º
| Weight | 5.2 kg |
|---|---|
| Dimensions | 14 × 26 × 40 cm |
| Brand | V2C |
| Power (kW) | 2x22kW |
| Number of sockets | 2 |
| Socket | Mode 3—IEC 62196 (Type 2) and Mode 2—CEE 7/4 (Schuko) |
| Number of plugs | 0 |
| Phases | 1 phase, 2 phases, 3 phases |
| Energy Meter | Digital With backlight |
| LED Screen | Integrated |
| LED Status Indication | Integrated |
| Operational temperature | -30 °C to +50 °C |
| Degree of protection | IP54 |
| Impact resistance | IK10 |
| Vandalism-proof | Yes |
| Stainless housing | Aluminum |
| UV resistant | Yes |
| Certificate | CE |
| Charging cable locking | Optional |
| Overcurrent protection | Integrated |
| Leakage current protection | Integrated |
| Weight | 21 kg |
| Dimensions ( Width x Height x Depth ) | 350 x 670 x 150 mm |
| Manufacturer | V2C (Spain) |
| Warranty | 24 months |
| Brand and Model | V2C Pole |
| Charging schedule | Yes |
| Dynamic Power balancing | Yes |
| OCPP ready | Yes |
| Communication | RS232, Wifi/4G |
| RFID | Yes |
| Smart control via | web Dashboard |
| Warranty | 36 months |
| Integrated Cable | Type 2 socket |
| Connector | Socket- Type 2 |
| Operating Temperature | -5'C to +45'C |
