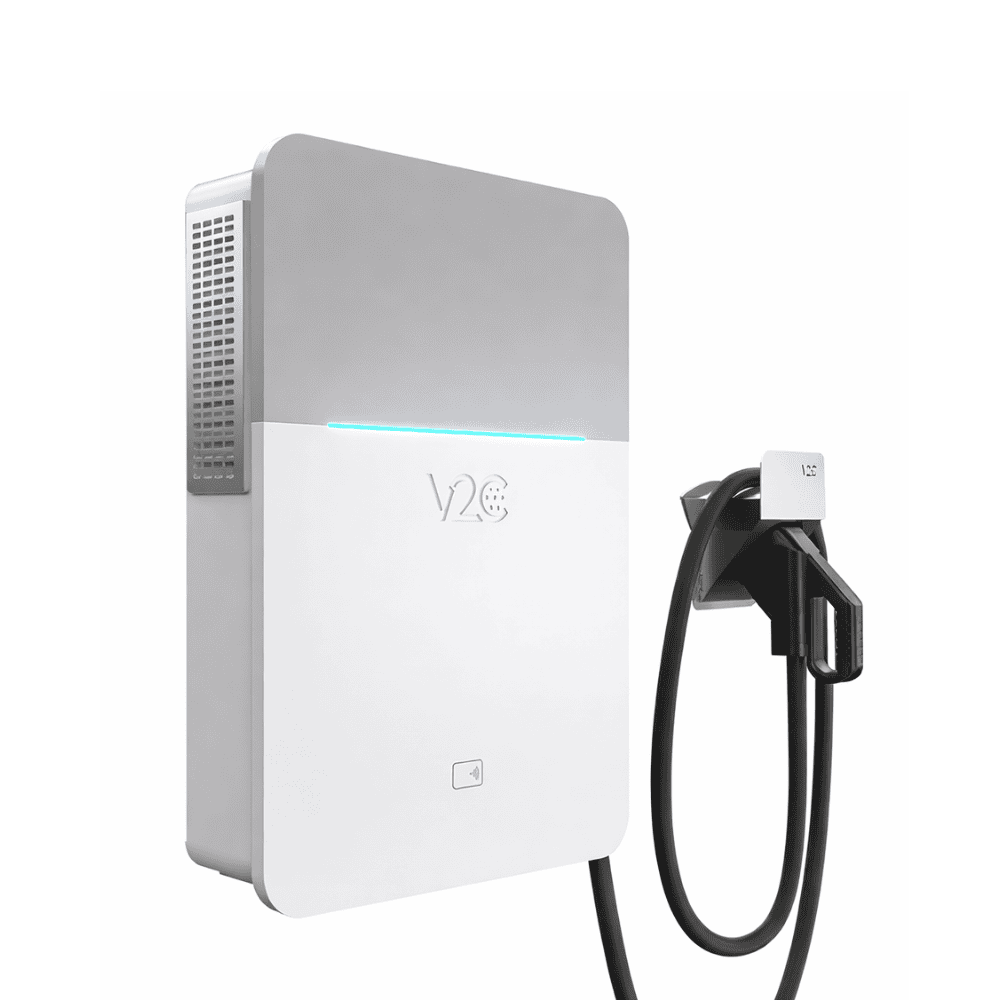

V2C Denka 20kW DC wallbox – 20kW Wallbox type charging station

The all-new and advanced V2C DENKA 20kW DC wallbox station.  20KW output from a wallbox type station is available. The compact design minimizes the space and allows cost-effective installation.

Application

Semi-fast charging in DC Tertiary sector and commercial exploitation

Design

• IP54 – IK10 protection rating
• Corrosion-resistant metal enclosure
• Interactive light system with status LEDs
• Forced ventilation

Features

• Charging mode 4
• DC charging 20 kW
• 5m CCS2 cable
• DC output 150 – 1000 Vdc
• Efficiency ≥ 95%

Connectivity and user interface

• WiFi / Ethernet / 4G connectivity
• User management via App
• Local (RFID),
• Plug & Charge
• V2C Cloud protocol, Cloud Rest API, OCPP 1.6J, Modbus TCP, RTU
• ISO 15118

Compact but Power full

– Fast and Effective
– Built to increase charging efficiency ≥ 95%
– Single CCS port provide up to 20kW of power – Possible to upgrade to 40kW (software unlock- additional fee)!
– A 30 min charge equates to ~100 km of range
– Simple design will blend in any business or private surroundings

Maintenance and monitoring via cloud:

Many problems can be solved by the manufacturer’s remote connection even before they appear to customers or the operator.

DENKA Datasheet
