MOBILE

• Mobile module: 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps

• SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

• Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID

• SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

• USSD: Supports sending and reading Unstructured Supplementary Service Data messages

• Black/White list: Operator black/white list

• Multiple PDN: Possibility to use different PDNs for multiple network access and services

• Band management: Band lock, Used band status display

• APN: Auto APN

• Bridge: Direct connection (bridge) between mobile ISP and device on LAN

• Passthrough: Router assigns its mobile WAN IP address to another device on LAN

WIRELESS

• Wireless mode: IEEE 802.11b/g/n, Access Point (AP), Station (STA)

• WiFi security: WPA2-Enterprise – PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation

• SSID/ESSID: SSID stealth mode and access control based on MAC address

• WiFi users: Up to 100 simultaneous connections

• Wireless Hotspot: Captive portal (Hotspot), internal/external Radius server, built in customizable landing page

• WAN: 1 x WAN port  10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

• LAN: 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

NETWORK

• Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP)

• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)

• VoIP passthrough support

  H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

• Connection monitoring:Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

• Firewall: Port forward, traffic rules, custom rules

• DHCP: Static and dynamic IP allocation, DHCP Relay, Relayd

• QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

• DDNS: Supported >25 service providers, others can be configured manually

• Network backup: WiFi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

• Load balancing: Balance Internet traffic over multiple WAN connections

• Hotspot: Internal/external Radius server, captive portal, built in customizable landing page

• SSHFS: Possibility to mount remote file system via SSH protocol

• Authentication: Pre-shared key, digital certificates, X.509 certificates

• Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

• VLAN: Port and tag based VLAN separation

• Mobile quota control: Custom data limits for both SIM cards

• WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

• OpenVPN: Multiple clients and a server can run simultaneously, 12 encryption methods

• OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC

• IPsec: IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)

• GRE: GRE tunnel

• PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3 support

• Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

• DMVPN: Method of building scalable IPsec VPNs

• SSTP: SSTP client instance support

• ZeroTier: ZeroTier VPN client support

• WireGuard: WireGuard VPN client and server support

• ID range: Respond to one ID in range [1;255] or any

• Allow Remote Access: Allow access through WAN

• Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality

• Supported functions: 01, 02, 03, 04, 05, 06, 15, 16

• Supported data formats: 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

• Supported baud rates: From 300 to 115200

• Supported functions: 01, 02, 03, 04, 05, 06, 15, 16

• Supported data formats: 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

• Number of data bits: From 5 to 8

• Number of stop bits: 1 or 2

• Parity: None, Even, Odd

• Flow: None, RTS/CTS, Xon/Xoff

• Duplex: Full duplex

• Supported baud rates

  From 300 to 115200

• Supported functions

  01, 02, 03, 04, 05, 06, 15, 16

• Supported data formats

  8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

• Number of data bits: 8

• Number of stop bits:1

• Parity: None, Even, Odd

• Flow: None, Xon/Xoff

• Duplex: Half duplex

• Protocol: HTTP(S), MQTT, Azure MQTT

• MQTT Gateway: Allows sending commands and receiving data from MODBUS Master through MQTT broker

• Supported modes: TCP Master, DNP3 Outstation, RTU Master

• WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log

• FOTA: Firmware update from server, automatic notification

• SSH: SSH (v1, v2)

• SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET

• Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, WiFi on/off

• TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

• MQTT: MQTT Broker, MQTT publisher

• SNMP: SNMP (v1, v2, v3), SNMP Trap

• JSON-RPC: Management API over HTTP/HTTPS

• MODBUS: MODBUS TCP status/control

• RMS: Teltonika Remote Management System (RMS)

• Cloud of Things: Allows monitoring of: Device data, Mobile data, Network info, Availability

• ThingWorx: Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

• Cumulocity: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength

• Azure IoT Hub: Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

SYSTEM CHARACTERISTICS

• CPU: Mediatek MIPS 24Kc 580 MHz

• RAM: 128 MB, DDR2

• FLASH storage: 16 MB, SPI Flash

• WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup, restore point

• FOTA: Update FW

• RMS: Update FW/configuration for multiple devices at once

• Keep settings: Update FW without losing current configuration

• Operating system: RutOS (OpenWrt based Linux OS)

• Supported languages: Busybox shell, Lua, C, C++

• Development tools: SDK package with build environment provided

• GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS

• Coordinates: GNSS coordinates via WebUI, SMS, TAVL, RMS

• NMEA: NMEA 0183

• NTRIP: NTRIP protocol (Networked Transport of RTCM via Internet Protocol)

• Server software: Supported server software TAVL, RMS

• Geofencing: Configurable multiple geofence zones

• RS232: DB9 connector, full RS232 (with RTS, CTS)

• RS485: RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate

• Serial functions: Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client

• Data rate: USB 2.0

• Applications: Samba share, USB-to-serial

• External devices: Possibility to connect external HDD, flash drive, additional modem, printer

• Storage formats: FAT, FAT32, NTFS

INPUT / OUTPUT

• Input: 1 x digital dry input (0 – 3 V), 1 x digital galvanically isolated input (0 – 30 V), 1 x analog input (0 – 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 – 5 V detected as logic low, 8 – 30 V detected as logic high)

• Output: 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)

• Events: Email, RMS, SMS

• I/O juggler: Allows to set certain I/O conditions to initiate event

• Connector: 4-pin industrial DC power socket

• Input voltage range: 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max

• PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 – 50 VDC

• Power consumption: < 2 W idle, < 7 W Max

PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS, SIM)

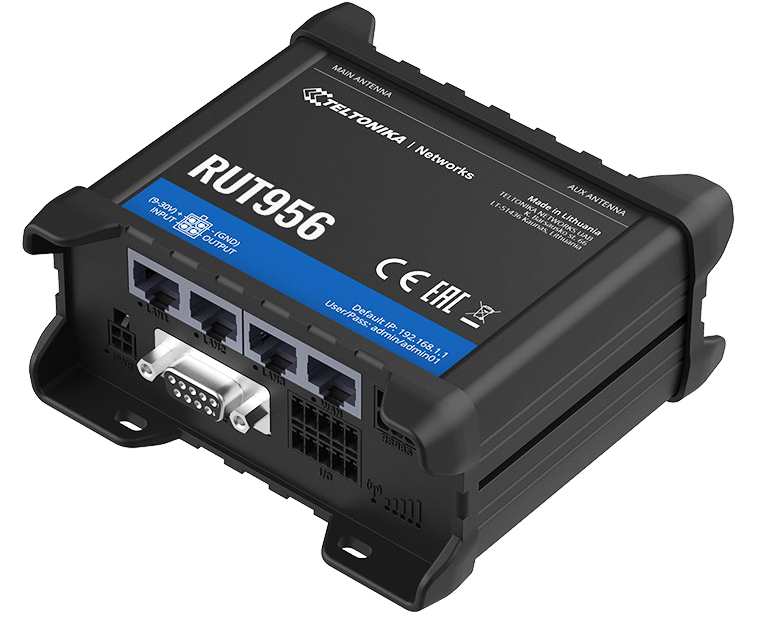

• Ethernet: 4 x RJ45 ports, 10/100 Mbps

• I/O’s: 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600)

• Status LEDs: 1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED

• SIM: 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)

• Power: 1 x 4-pin power connector

• Input/output: 1x 10 pin industrial socket for inputs/outputs

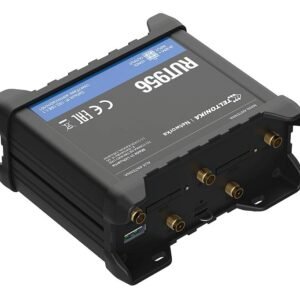

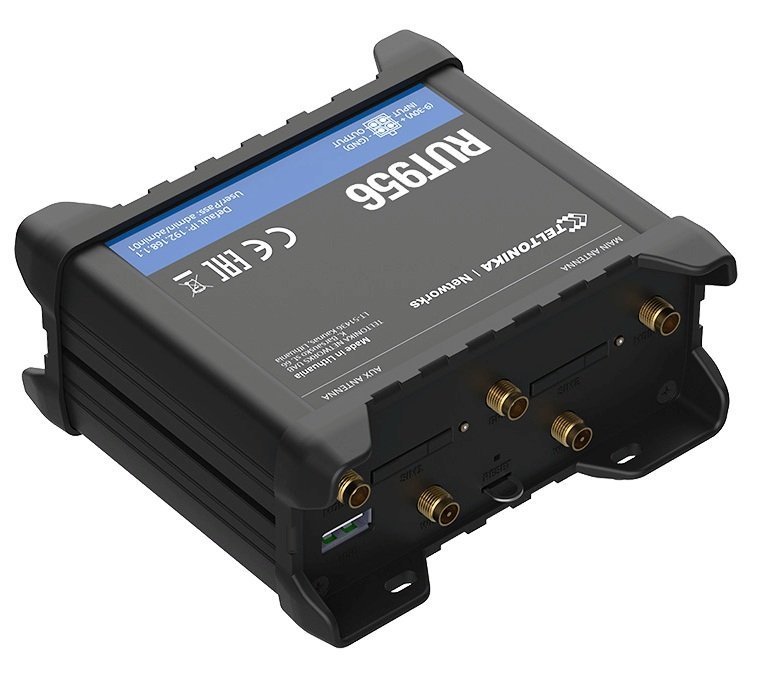

• Antennas: 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x SMA for GNSS

• USB: 1 x USB A port for external devices, 1 x USB A port for external devices

• RS232: 1 x DB9 socket

• RS485: 1 x 6-pin industrial socket

• Reset: Reboot/User default reset/Factory reset button

• Casing material: Aluminium housing, plastic panels

• Dimensions (W x H x D): 110 x 50 x 100 mm

• Weight: 287 g

• Mounting options: DIN rail (can be mounted on two sides), flat surface placement

• Operating temperature: -40 °C to 75 °C

• Operating humidity: 10% to 90% non-condensing

• Ingress Protection Rating: IP30

• Regulatory: CE/RED, UKCA, CB

EMI IMMUNITY

• Standards: EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, Draft EN 301 489-19 V2.2.0, Final draft EN 301 489-52 V1.2.0, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019, EN IEC 61000-3-2:2019

• ESD: EN 61000-4-2:2009

• RS: EN 61000-4-3:2020

• EFT: EN 61000-4-4:2012

• Surge immunity (AC Power Line), EN 61000-4-5:2014+A1:2017

• CS: EN 61000-4-6:2009

• DIP: EN IEC 61000-4-11:2020

• Standards: EN 300 328 V2.2.2, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1, EN 303 413 V1.1.1

• Standards: EN IEC 62311:2020, AS/NZS 60950.1:2015, IEC 62368-1:2018, EN IEC 62368-1:2020+A11:2020
